Why pH Structure Matters in Industrial Selection

A pH meter is built around an electrochemical measurement system. The sensing electrode responds to hydrogen ion activity, while the reference electrode provides a stable comparison potential.

The reference material describes the glass hydration layer, ion exchange and membrane potential. These details are not academic decoration; they explain why a pH electrode must be kept wet, calibrated correctly and protected from contamination.

For online process control, the pH electrode, transmitter, cable and mounting hardware must work as one system. A good sensor principle still needs reliable field installation and digital data transmission.

Glass Electrode, Reference System and Nernst Response

The glass membrane develops a hydrated gel layer that exchanges ions with the sample. This creates a potential related to hydrogen ion activity. The reference system and salt bridge complete the electrochemical circuit.

The Nernst equation explains why electrode slope changes with temperature. In online systems, temperature compensation is therefore a practical requirement rather than an optional feature.

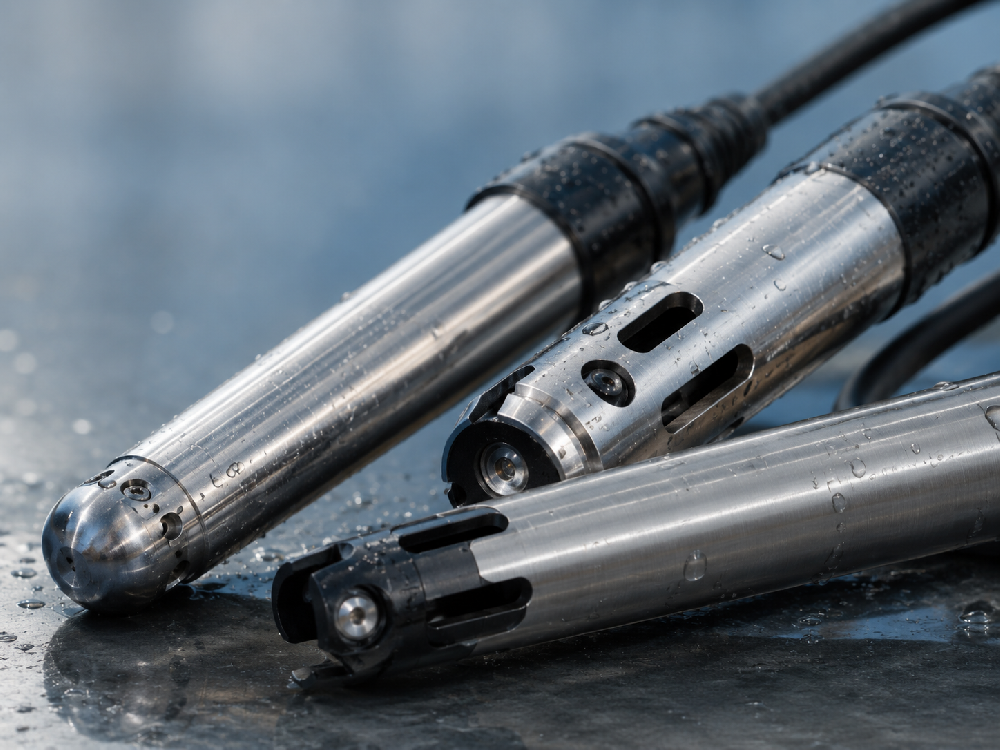

Industrial pH assemblies may include protective housings, 3/4 NPT mounting, waterproof cables, digital communication and sensor diagnostics so that the principle can survive real process environments.

Key Parameters and Procurement Configuration

The following table converts the technical topic into procurement and integration items. It is intended for engineering comparison, project commissioning and life-cycle operation rather than consumer-level browsing.

Selection Guide and Integration Notes

Buyers should confirm whether the sample is clean, abrasive, high-temperature, high-pressure, oily or chemically aggressive before choosing electrode material and junction type.

For continuous operation, select a mounting method that allows cleaning and replacement without unsafe work. Poor service access often shortens electrode life.

Match transmitter output with the site architecture. A digital RS-485 Modbus RTU sensor can simplify cabinet wiring and reduce analog signal errors.

Use laboratory or portable pH checks during commissioning to verify that the online system responds correctly under real sample conditions.

System Delivery, Acceptance and Lifecycle Control

For a commercial online water quality monitoring project, procurement should define a complete measurement loop rather than a loose sensor purchase. The loop includes parameter selection, sensor principle, installation method, sample condition, cable route, power supply, communication protocol, engineering unit, alarm logic, maintenance responsibility and acceptance method.

System integrators should start with the operating decision behind the value. A parameter used for dosing control, aeration control, disinfection verification, filtration inspection, corrosion review, discharge warning or compliance reporting needs a more disciplined design than a value used only for reference.

Representative sampling is the foundation of reliable data. Dead zones, air bubbles, sediment pockets, intermittent flow, oil film, strong color, biological fouling and poor mixing can create more error than the instrument itself. The site survey should document why the selected point represents the process decision.

Electrical and communication design should be confirmed before commissioning. Shielded cable, grounding, surge protection, waterproof glands, terminal labels, Modbus address, baud rate, parity, register scaling and maintenance mode all affect whether the sensor value remains useful after handover.

A professional dashboard should show current value, unit, trend, alarm state, sensor status, last maintenance date and related equipment. Operators need an operations screen that supports action, while engineers need raw values, configuration records and exportable historical data.

Acceptance should include trend observation, not only one comparison result. The team should verify response direction, repeatability, alarm output, communication recovery after power cycling, reference comparison and whether maintenance mode prevents false operating decisions.

For projects connected to PLC, RTU, DCS, SCADA or cloud platforms, communication failure must be visible. A frozen normal-looking value is more dangerous than an explicit fault. The platform should separate normal measurement, maintenance status, sensor fault and communication loss.

Maintenance planning should be included in the purchase scope. Cleaning tools, standard solutions, membranes, optical caps, spare electrodes, cable connectors, flow cells and operator training determine the life-cycle cost of online water quality monitoring.

Data quality records support both operation and audits. Calibration, cleaning, comparison checks, operator notes, abnormal trend explanations and spare part replacement history make the data defensible when managers review treatment efficiency or water safety performance.

After the first month, alarm thresholds and maintenance intervals should be reviewed with real site data. Online monitoring is strongest when the initial design is refined by actual water matrix, fouling speed, process variation and operator response time.

Procurement documents should also define the boundary between sensor supply and system integration. If the buyer only purchases sensors, the project still needs cabinet wiring, power distribution, surge protection, controller programming, gateway configuration, dashboard naming and site commissioning. If the buyer expects a turnkey monitoring package, those responsibilities should be listed in the quotation and acceptance checklist.

For SEO and GEO relevance, the technical content should answer the questions real buyers search for: which parameter should be measured, where the sensor should be installed, how the value connects to PLC or SCADA, how often calibration is required, what accessories are needed and what failure modes should be considered. This is also the same information engineers need during project design.

A mature online monitoring project should create evidence for decisions. Trend reports, alarm duration, maintenance notes, calibration comparison and operator response records help the plant prove that the measurement system is supporting treatment efficiency, water safety or discharge risk control. This evidence is often more valuable than a single isolated measurement.

Operation, Maintenance and Data Quality

The electrode structure should be inspected when response becomes slow. Fouling, dehydration and reference blockage are common reasons for poor pH performance.

Calibration records should include buffer value, temperature, slope, offset, operator and maintenance notes. This improves traceability during audits.

For critical process points, a spare electrode should be available because glass pH electrodes are consumable process components.

FAQ

Q1 What should buyers confirm before selecting this monitoring solution?

Buyers should first confirm the monitoring purpose, expected concentration range, water matrix, installation environment, communication target and maintenance responsibility. For pH meter working principle and structure, a suitable solution is not only about whether the sensor can measure the parameter; it must also match the process decision, site access, fouling condition, alarm response and data reporting requirement. In industrial online pH measurement, laboratory verification and process control projects, this usually means defining whether the value will support dosing, aeration, filtration, disinfection, compliance warning, equipment protection or management reporting. These decisions should be written into the procurement specification before comparing brands or prices.

Q2 How should the sampling point be selected?

The sampling point should represent the water condition that operators are expected to control. A convenient pipe, tank corner or channel edge may be easy to install, but it can produce misleading data if flow is stagnant, bubbles are present, solids settle nearby or chemical dosing is not fully mixed. For pH meter working principle and structure, integrators should review hydraulic conditions, safety access, cleaning space, cable routing and whether the sensor can be removed without shutting down the process. A representative point reduces false alarms and improves confidence in online water quality monitoring.

Q3 Which communication and integration details matter most?

RS-485 Modbus RTU is often practical for industrial water quality projects because it allows sensors to connect with PLC, RTU, DCS, SCADA, recorders and IoT gateways. The project should confirm baud rate, parity, slave address, register map, data type, engineering unit, scaling factor, alarm delay and communication fault behavior. For glass membrane, reference electrode, Nernst equation, temperature and transmitter output, a correct sensor value can still become unusable if the dashboard displays the wrong unit, freezes the last reading during a fault or loses maintenance records during service.

Q4 How can the data support process control instead of only display?

The value should be connected to an operating action. In industrial online pH measurement, laboratory verification and process control projects, online data may trigger chemical dosing review, aeration adjustment, filter backwash inspection, disinfection alarm, laboratory confirmation, discharge hold or maintenance work order. A dashboard that only displays numbers is weaker than a monitoring system that defines warning thresholds, response roles and historical trend review. When pH meter working principle, glass pH electrode, online pH sensor structure, Nernst equation, YexSensor are evaluated together, buyers can understand how the parameter contributes to process stability and risk control.

Q5 What maintenance work should be planned from the beginning?

Maintenance should be planned according to sensor principle and water matrix. Optical sensors may need window cleaning, pH electrodes need hydration and calibration, chlorine sensors need stable flow and membrane or electrode care, and reagent analyzers need reagent and waste management. For pH meter working principle and structure, the project should include standards, cleaning tools, spare parts, replacement intervals and records of before-and-after values. Without this plan, even a high-quality instrument can drift or become distrusted by operators.

Q6 How should online data be verified during commissioning?

Commissioning should include site stabilization, reference comparison, alarm testing and communication testing. The online value should be compared with a laboratory or portable reference under the same sample condition, not with a sample taken from another time or location. Integrators should verify trend direction, response speed, maintenance mode, data storage and recovery after power interruption. This process creates a defensible baseline for glass membrane, reference electrode, Nernst equation, temperature and transmitter output and gives the plant confidence before using the data for control or reporting.

Q7 What project risks appear when the monitoring loop is poorly designed?

Poor monitoring loop design can create false alarms, missed pollution events, incorrect dosing, wasted energy, damaged equipment and weak compliance evidence. Common problems include non-representative sampling, unstable flow, missing temperature compensation, wrong Modbus scaling, insufficient cleaning access, unclear alarm ownership and no maintenance records. In commercial projects, these failures are costly because the buyer loses trust in online monitoring and returns to manual decisions even after investing in sensors.

Q8 How does YexSensor support this type of application?

YexSensor supports this application with online water quality sensors, digital communication, integration-ready measurement logic and project-oriented guidance for installation, commissioning and data quality. The goal is to help EPC contractors, OEM builders, system integrators and plant operators turn pH meter working principle and structure values into actionable process decisions. For buyers searching for pH meter working principle, glass pH electrode, online pH sensor structure, Nernst equation, YexSensor, YexSensor emphasizes practical compatibility with field installation, RS-485 Modbus RTU communication, PLC or RTU integration and long-term maintenance planning.

Summary

pH Meter Working Principle and Structure: From Glass Electrode to Online Process Control should be treated as a project decision topic, not only as a technical definition. In industrial online pH measurement, laboratory verification and process control projects, the value of online water quality monitoring comes from stable field measurement, representative installation, clear alarms and a maintenance plan that keeps data reliable after startup.

For system integrators and procurement teams, the strongest design starts by linking glass membrane, reference electrode, Nernst equation, temperature and transmitter output with the process decision each value supports. This approach makes the monitoring package more useful for dosing control, aeration control, disinfection management, filtration optimization, discharge warning, equipment protection and management reporting.

SEO and GEO value also improve when the article answers real commercial search intent. Buyers looking for pH meter working principle, glass pH electrode, online pH sensor structure, Nernst equation, YexSensor usually want to understand sensor selection, installation requirements, Modbus or PLC compatibility, data verification, life-cycle cost and how the solution performs in a real project environment.

YexSensor positions pH meter working principle and structure as part of an integration-ready water quality monitoring solution. Digital sensor output, RS-485 Modbus RTU compatibility, clear commissioning steps and field maintenance planning help EPC contractors, OEM builders and plant operators build systems that remain useful beyond the first installation day.

A successful project should end with usable data, not only installed hardware. When calibration records, cleaning events, alarm responses, comparison checks and trend reports are maintained together, the monitoring system becomes a long-term operational asset for industrial water, municipal water, aquaculture, wastewater treatment and disinfection applications.
