YEX-S1PRO-TSS Online Suspended Solids Sensor: Stable Online Suspended Solids Monitoring for Industrial Water Quality Projects

YEX-S1PRO-TSS Online Suspended Solids Sensor Product Introduction

YexSensor YEX-S1PRO-TSS belongs to the YexSensor S1 PRO stainless-steel sensor series. It is designed for continuous suspended solids monitoring in natural water, industrial water, laboratory water, municipal wastewater and automated water quality systems. The sensor outputs suspended solids and temperature for easier process evaluation and remote data acquisition.

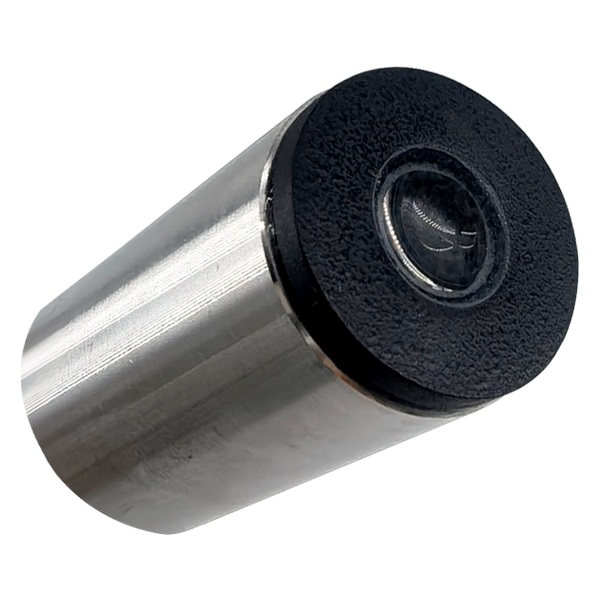

The product uses optical scattering method, 316L stainless steel + ABS housing and NPT 3/4 thread installation. It supports RS-485 Modbus communication, with optional 4-20mA output available according to project integration requirements.

For suspended solids applications, the most important engineering concerns are stable readings, clear parameter interpretation and low-maintenance integration. YEX-S1PRO-TSS addresses these needs by combining optical scattering method, +/-5% of reading; temperature +/-0.1 C; linearity 0.999 R2 accuracy performance, 15 s response behavior and RS-485 Modbus communication in one compact probe.

S1 PRO Series Positioning and Engineering Advantages

The S1 PRO series is positioned as the upgraded high-accuracy stainless-steel sensor line. Compared with standard plastic-housing sensor configurations, this series highlights higher measurement accuracy, 316L stainless steel structure, IP68 protection, automatic temperature compensation, digital Modbus integration and optional analog output. It is suitable for system integrators who need stable field deployment, compact wiring and precise parameter reading.

The sensor is suitable for projects where suspended solids and temperature must be sent continuously to a PLC, RTU, data logger or cloud gateway. Digital Modbus data reduces signal attenuation over distance, while optional 4-20mA output keeps the product compatible with older analog control panels. This dual integration path helps engineering teams standardize cabinet wiring without sacrificing site flexibility.

Core Technical Highlights

• 316L stainless steel + ABS housing: The robust housing supports demanding field installation while keeping the probe compact for tanks, pipes and immersion points.

• High-accuracy temperature channel: Temperature accuracy reaches +/-0.1 C, supporting reliable compensation and more stable suspended solids data.

• RS-485 / 4-20mA output options: Standard RS-485 Modbus output supports PLC, RTU, data logger and IoT gateway integration, while optional 4-20mA can be selected for analog systems.

• Optical: Optical scattering method provides real-time TSS trend data.

• 15-second: 15-second response supports process control and alarm feedback.

Wide Application Scenarios and System Integration Solutions

YEX-S1PRO-TSS Online Suspended Solids Sensor can be integrated into PLC, SCADA, RTU and water quality IoT systems. The product is suitable for repeated online measurement points where offline sampling is slow, data continuity is weak, or on-site wiring space is limited.

1. Wastewater Suspended Solids
   Used for continuous online suspended solids monitoring; it helps operators follow process change, discharge fluctuation and treatment efficiency in real time.

2. Sedimentation Tank Monitoring
   Used for continuous online suspended solids monitoring; it provides continuous online data for system control, alarms and historical trend analysis.

3. Industrial Water Discharge
   Used for continuous online suspended solids monitoring; it supports process control, alarm logic and compliance-oriented trend records.

4. River Sediment Monitoring
   Used for continuous online suspended solids monitoring; it supports environmental trend tracking, abnormal event warning and remote station reporting.

For engineering contractors, this means the same product can be used across new monitoring stations, retrofit control panels and OEM water quality cabinets. The digital output simplifies data mapping, while the stainless-steel construction helps improve long-term reliability in outdoor and industrial environments.

Engineering Selection, Interference and Project Acceptance

Measurement Meaning and Selection Boundary

TSS and turbidity are related but not interchangeable. Turbidity describes optical scattering, while TSS is a mass concentration; their ratio changes with particle properties. Confirm the TSS range, particle size and color, normal and upset turbidity, flow velocity, sedimentation risk, cleaning access and the laboratory filtration method used for acceptance.

Installation Risk and Data Quality

Particle size, color, bubbles, deposits and changing solids composition influence optical scattering. Install in representative flow, avoid sediment beds and correlate with simultaneous filtered TSS samples.

System Integration and Alarm Design

Map the primary measurement, temperature and communication status as separate engineering tags. Configure process high/low alarms independently from communication-loss, out-of-range and rate-of-change alarms. Filtering should be limited to what the process response permits so a real step change is not hidden.

Commissioning and Acceptance

Record the sensor model, range, unit, output option, device address, baud rate and reference method. Compare simultaneous online and reference results at representative conditions, then function-test alarms, historical trends and any control interlock from probe to HMI. Acceptance should cover the complete measurement loop rather than only the local probe value.

YEX-S1PRO-TSS Online Suspended Solids Sensor Technical Performance Specifications

Installation Guidance and Electrical Connection Instructions

Installation Position Recommendations

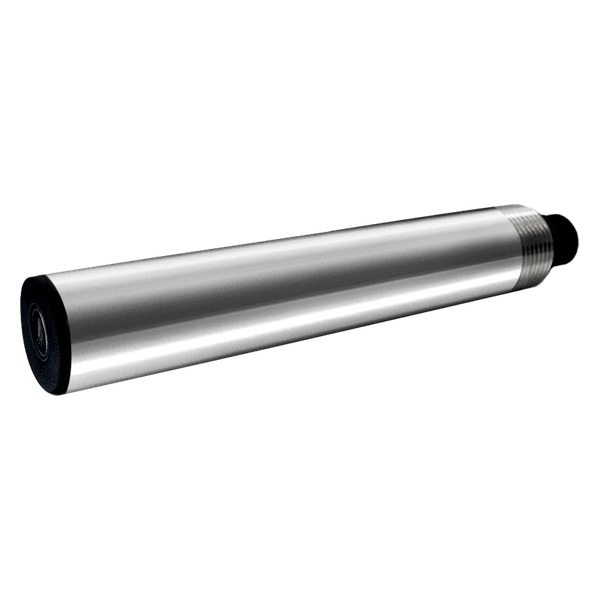

The sensor can be installed by immersion, or mounted in a pipe or tank through the NPT 3/4 thread. For electrochemical and optical sensors, avoid upside-down or horizontal installation when the application requires a stable liquid contact surface. Keep the measuring area fully immersed and avoid strong bubbles or sediment impact where possible.

Electrical Wiring

Connection reference: 1-red power positive, 2-black power negative, 3-green 485B, 4-yellow 485A, 5-optional 4-20mA output. Wire colors may vary by batch, so the connector mark or pin number should be used as the final reference.

Maintenance, Care and Calibration Guide

At least one third of the sensor should be inserted into the measured liquid so the measuring end is fully covered. Keep wiring terminals, measuring surface and aviation connector clean. Clean the measuring surface with a soft brush and avoid scratching optical windows, electrodes or membranes.

The sensor is calibrated before delivery. Calibration is not recommended unless necessary. If long-term use causes data drift, perform zero or slope calibration according to the communication protocol and site standard solution.

Frequently Asked Questions

Q1: What does YEX-S1PRO-TSS measure, and what decision can the data support?

A1: YEX-S1PRO-TSS uses optical scattering for suspended-solids measurement for continuous suspended solids sensor monitoring. It is intended to support clarifier effluent, industrial discharge, river sediment monitoring, filter breakthrough and process-water solids control. Define whether the signal will be used for display, alarm, process comparison, automatic control or compliance screening, because each purpose requires different limits and verification.

Q2: What measurement limitation should engineers understand before specifying this sensor?

A2: TSS and turbidity are related but not interchangeable. Turbidity describes optical scattering, while TSS is a mass concentration; their ratio changes with particle properties.

Q3: What information is required to select the correct range and configuration?

A3: Confirm the TSS range, particle size and color, normal and upset turbidity, flow velocity, sedimentation risk, cleaning access and the laboratory filtration method used for acceptance.

Q4: Which site conditions can interfere with the reading?

A4: Particle size, color, bubbles, deposits and changing solids composition influence optical scattering. Install in representative flow, avoid sediment beds and correlate with simultaneous filtered TSS samples.

Q5: Where should the sensor be installed?

A5: Choose a continuously wetted and representative point after adequate mixing. Avoid dead zones, direct chemical-injection impact, sediment accumulation and locations where bubbles collect. Keep the sensing area fully immersed and follow the NPT 3/4 mounting and orientation requirements in the supplied manual.

Q6: How should RS-485 Modbus be commissioned with a PLC or SCADA system?

A6: Verify 12-24 VDC power, A/B polarity, device address, baud rate, register order, engineering unit and decimal scaling. Create a separate communication-status alarm so a frozen or missing value is not interpreted as normal water quality. Acceptance should compare the probe display, PLC register and HMI value across the complete loop.

Q7: When should optional 4-20mA be selected?

A7: Choose RS-485 Modbus when digital values, multiple channels, diagnostics or multidrop networking are required. Choose the optional 4-20mA configuration for an existing analog-only controller or a conventional point-to-point loop. The output options are selected according to the order; confirm the mapped parameter and full-scale value before production.

Q8: What maintenance and verification routine is recommended?

A8: Inspect the sensing surface, cable, seals and connector; remove deposits using the method stated in the manual and avoid scratching optical windows, membranes or electrodes. Compare the stabilized online result with the agreed site reference after commissioning, process changes or cleaning. Recalibrate only after installation, reference-method and fouling effects have been excluded.

Quality Assurance and After-sales Service

YexSensor is committed to providing an excellent product experience.

Strict quality inspection: Each product goes through a standardized inspection process and 72-hour aging test to help ensure a defect rate below 2%.

One-year warranty: A one-year after-sales warranty is provided from the date of sale, excluding man-made damage or improper use.

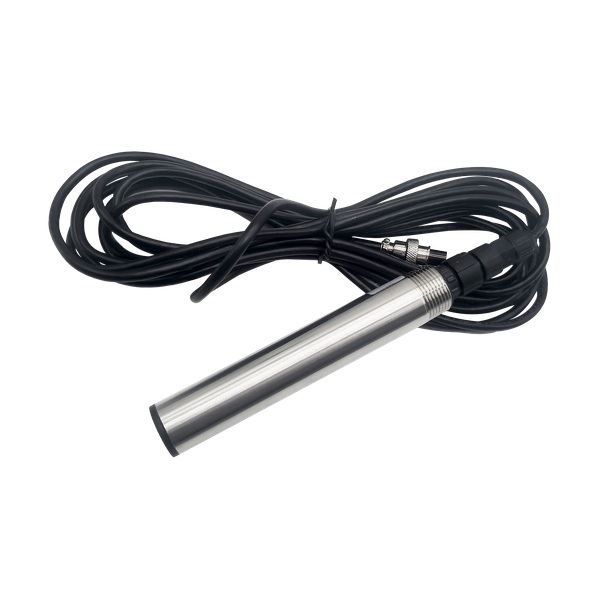

Cable configuration: A 5-meter four-core shielded cable is the standard cable configuration.
