YEX-S1PRO-OIL Online Oil in Water Sensor: Stable Online Oil In Water Monitoring for Industrial Water Quality Projects

YEX-S1PRO-OIL Online Oil in Water Sensor Product Introduction

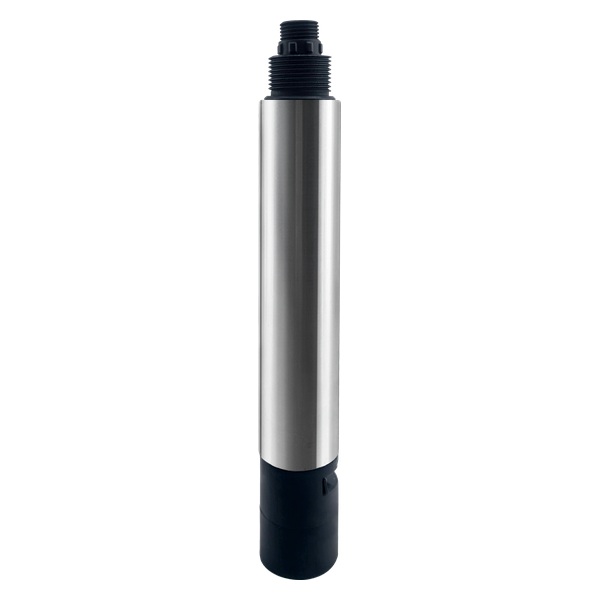

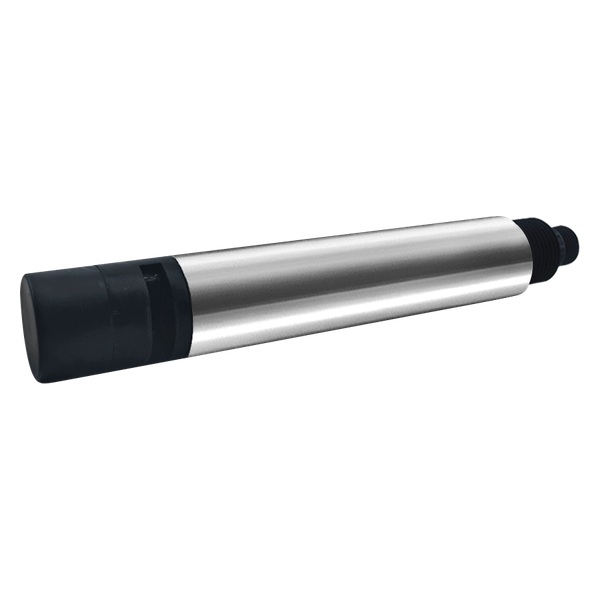

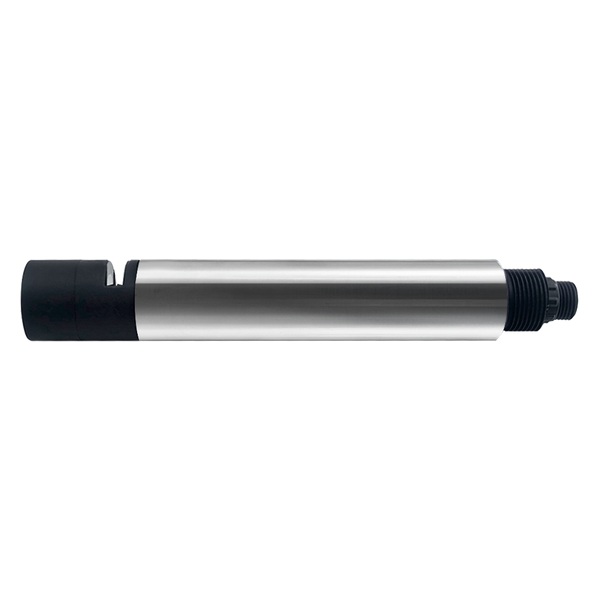

YexSensor YEX-S1PRO-OIL belongs to the YexSensor S1 PRO stainless-steel sensor series. It is designed for continuous oil in water monitoring in natural water, industrial water, laboratory water, municipal wastewater and automated water quality systems. The sensor outputs oil in water and temperature for easier process evaluation and remote data acquisition.

The product uses narrow-band LED fluorescence method, 316L stainless steel + ABS housing and NPT 3/4 thread installation. It supports RS-485 Modbus communication, with optional 4-20mA output available according to project integration requirements.

For oil in water applications, the most important engineering concerns are stable readings, clear parameter interpretation and low-maintenance integration. YEX-S1PRO-OIL addresses these needs by combining narrow-band LED fluorescence method, +/-3% of reading; temperature +/-0.1 C; linearity 0.999 R2 accuracy performance, 30 s response behavior and RS-485 Modbus communication in one compact probe.

S1 PRO Series Positioning and Engineering Advantages

The S1 PRO series is positioned as the upgraded high-accuracy stainless-steel sensor line. Compared with standard plastic-housing sensor configurations, this series highlights higher measurement accuracy, 316L stainless steel structure, IP68 protection, automatic temperature compensation, digital Modbus integration and optional analog output. It is suitable for system integrators who need stable field deployment, compact wiring and precise parameter reading.

The sensor is suitable for projects where oil in water and temperature must be sent continuously to a PLC, RTU, data logger or cloud gateway. Digital Modbus data reduces signal attenuation over distance, while optional 4-20mA output keeps the product compatible with older analog control panels. This dual integration path helps engineering teams standardize cabinet wiring without sacrificing site flexibility.

Core Technical Highlights

• 316L stainless steel + ABS housing: The robust housing supports demanding field installation while keeping the probe compact for tanks, pipes and immersion points.

• High-accuracy temperature channel: Temperature accuracy reaches +/-0.1 C, supporting reliable compensation and more stable oil in water data.

• RS-485 / 4-20mA output options: Standard RS-485 Modbus output supports PLC, RTU, data logger and IoT gateway integration, while optional 4-20mA can be selected for analog systems.

• Fluorescence: Fluorescence method is suitable for online oil-in-water trend monitoring.

• 316L: 316L stainless steel housing and IP68 structure support industrial water applications.

Wide Application Scenarios and System Integration Solutions

YEX-S1PRO-OIL Online Oil in Water Sensor can be integrated into PLC, SCADA, RTU and water quality IoT systems. The product is suitable for repeated online measurement points where offline sampling is slow, data continuity is weak, or on-site wiring space is limited.

1. Oilfield Produced Water
   Used for continuous online oil in water monitoring; it helps detect oil carryover and protect downstream treatment equipment.

2. Industrial Oily Wastewater
   Used for continuous online oil in water monitoring; it helps operators follow process change, discharge fluctuation and treatment efficiency in real time.

3. Surface Water Oil Pollution Warning
   Used for continuous online oil in water monitoring; it supports environmental trend tracking, abnormal event warning and remote station reporting.

4. Cooling Water Leakage Monitoring
   Used for continuous online oil in water monitoring; it provides continuous online data for system control, alarms and historical trend analysis.

For engineering contractors, this means the same product can be used across new monitoring stations, retrofit control panels and OEM water quality cabinets. The digital output simplifies data mapping, while the stainless-steel construction helps improve long-term reliability in outdoor and industrial environments.

Engineering Selection, Interference and Project Acceptance

Measurement Meaning and Selection Boundary

The sensor responds to fluorescent oil components; different petroleum products may produce different response factors, so it should not be treated as a universal gravimetric oil analyzer. Confirm the target oil type, expected background fluorescence, normal and upset concentrations, cleaning chemicals and whether the point is intended for early warning or quantitative process control.

Installation Risk and Data Quality

Natural organic matter, detergents, colored water, bubbles, window fouling and a change in oil composition can affect fluorescence response. Establish a site baseline and verify unusual events with the agreed laboratory oil method.

System Integration and Alarm Design

Map the primary measurement, temperature and communication status as separate engineering tags. Configure process high/low alarms independently from communication-loss, out-of-range and rate-of-change alarms. Filtering should be limited to what the process response permits so a real step change is not hidden.

Commissioning and Acceptance

Record the sensor model, range, unit, output option, device address, baud rate and reference method. Compare simultaneous online and reference results at representative conditions, then function-test alarms, historical trends and any control interlock from probe to HMI. Acceptance should cover the complete measurement loop rather than only the local probe value.

YEX-S1PRO-OIL Online Oil in Water Sensor Technical Performance Specifications

Installation Guidance and Electrical Connection Instructions

Installation Position Recommendations

The sensor can be installed by immersion, or mounted in a pipe or tank through the NPT 3/4 thread. For electrochemical and optical sensors, avoid upside-down or horizontal installation when the application requires a stable liquid contact surface. Keep the measuring area fully immersed and avoid strong bubbles or sediment impact where possible.

Electrical Wiring

Connection reference: 1-red power positive, 2-black power negative, 3-green 485B, 4-yellow 485A, 5-optional 4-20mA output. Wire colors may vary by batch, so the connector mark or pin number should be used as the final reference.

Maintenance, Care and Calibration Guide

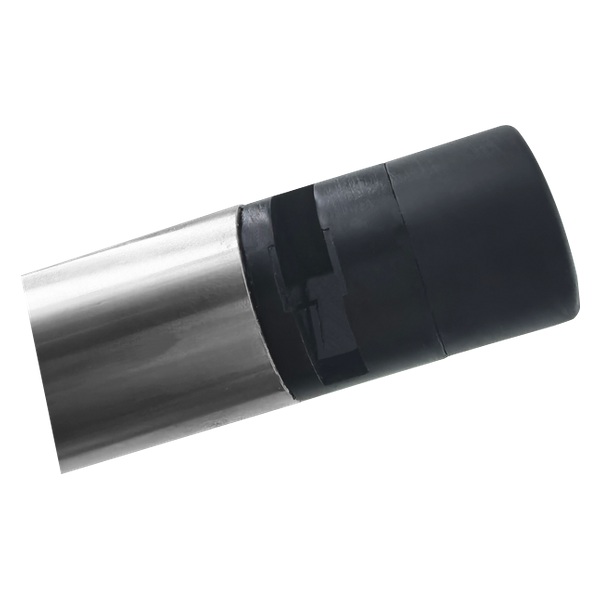

At least one third of the sensor should be inserted into the measured liquid so the measuring end is fully covered. Keep wiring terminals, measuring surface and aviation connector clean. Clean the measuring surface with a soft brush and avoid scratching optical windows, electrodes or membranes.

The sensor is calibrated before delivery. Calibration is not recommended unless necessary. If long-term use causes data drift, perform zero or slope calibration according to the communication protocol and site standard solution.

Frequently Asked Questions

Q1: What does YEX-S1PRO-OIL measure, and what decision can the data support?

A1: YEX-S1PRO-OIL uses narrow-band fluorescence for continuous oil-in-water sensor monitoring. It is intended to support produced-water discharge, refinery and petrochemical wastewater, surface-water spill warning and cooling-water hydrocarbon leakage. Define whether the signal will be used for display, alarm, process comparison, automatic control or compliance screening, because each purpose requires different limits and verification.

Q2: What measurement limitation should engineers understand before specifying this sensor?

A2: The sensor responds to fluorescent oil components; different petroleum products may produce different response factors, so it should not be treated as a universal gravimetric oil analyzer.

Q3: What information is required to select the correct range and configuration?

A3: Confirm the target oil type, expected background fluorescence, normal and upset concentrations, cleaning chemicals and whether the point is intended for early warning or quantitative process control.

Q4: Which site conditions can interfere with the reading?

A4: Natural organic matter, detergents, colored water, bubbles, window fouling and a change in oil composition can affect fluorescence response. Establish a site baseline and verify unusual events with the agreed laboratory oil method.

Q5: Where should the sensor be installed?

A5: Choose a continuously wetted and representative point after adequate mixing. Avoid dead zones, direct chemical-injection impact, sediment accumulation and locations where bubbles collect. Keep the sensing area fully immersed and follow the NPT 3/4 mounting and orientation requirements in the supplied manual.

Q6: How should RS-485 Modbus be commissioned with a PLC or SCADA system?

A6: Verify 12-24 VDC power, A/B polarity, device address, baud rate, register order, engineering unit and decimal scaling. Create a separate communication-status alarm so a frozen or missing value is not interpreted as normal water quality. Acceptance should compare the probe display, PLC register and HMI value across the complete loop.

Q7: When should optional 4-20mA be selected?

A7: Choose RS-485 Modbus when digital values, multiple channels, diagnostics or multidrop networking are required. Choose the optional 4-20mA configuration for an existing analog-only controller or a conventional point-to-point loop. The output options are selected according to the order; confirm the mapped parameter and full-scale value before production.

Q8: What maintenance and verification routine is recommended?

A8: Inspect the sensing surface, cable, seals and connector; remove deposits using the method stated in the manual and avoid scratching optical windows, membranes or electrodes. Compare the stabilized online result with the agreed site reference after commissioning, process changes or cleaning. Recalibrate only after installation, reference-method and fouling effects have been excluded.

Quality Assurance and After-sales Service

YexSensor is committed to providing an excellent product experience.

Strict quality inspection: Each product goes through a standardized inspection process and 72-hour aging test to help ensure a defect rate below 2%.

One-year warranty: A one-year after-sales warranty is provided from the date of sale, excluding man-made damage or improper use.

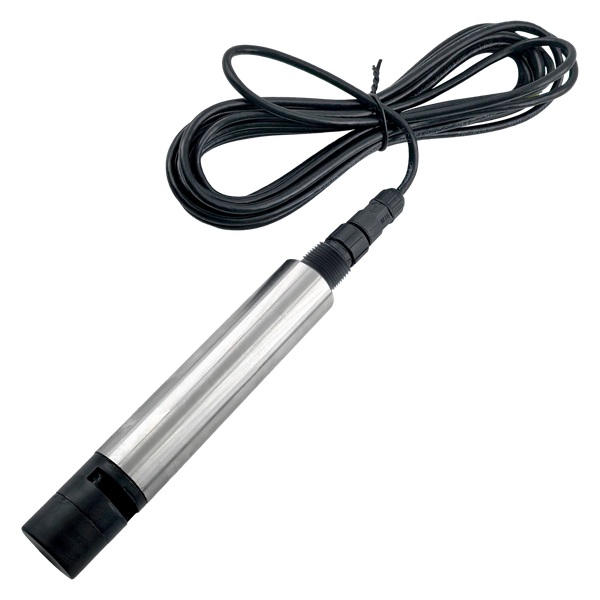

Cable configuration: A 5-meter four-core shielded cable is the standard cable configuration.
