Why Installation Determines TSS and Sludge Data Quality
Suspended solids and sludge concentration meters are used to monitor solids in wastewater processes. Typical points include thickening tanks, final discharge, equalization tanks, aeration basins, return sludge channels and process control points.
The reference material explains that the transmitter and sensor must be installed where the sample is representative, accessible and not dominated by bubbles. This is especially important for optical sensors because bubbles and heavy deposits can create strong interference.
For wastewater plants, TSS and sludge concentration are not just laboratory indicators. Online data can support sludge wasting, clarifier performance, discharge warning and process troubleshooting.
Monitoring Points, Mounting Methods and Optical Measurement
Online TSS sensors usually use optical scattering or backscatter. Light enters the water, suspended particles scatter the light, and the sensor calculates suspended solids or sludge concentration from the response.

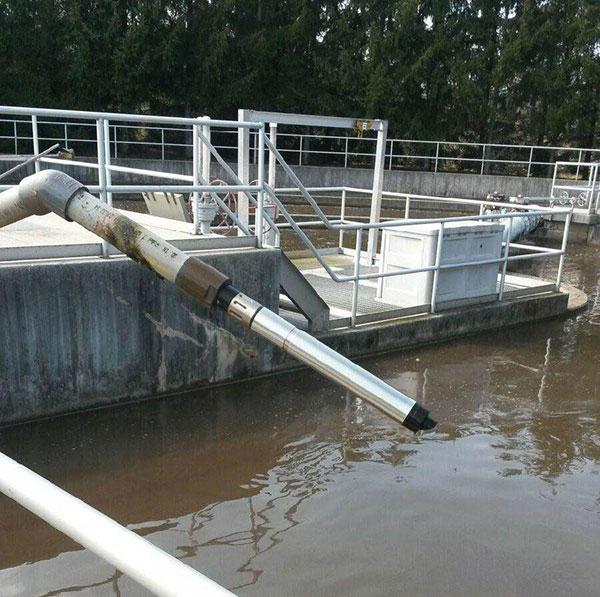

Immersion installation is common in tanks, channels, clarifiers and basins. Flow-cell or pipeline installation can be used where a controlled sample stream is available.
The installation should keep distance from side walls and tank bottoms, avoid heavy bubbles, allow cleaning access and keep the probe oriented so the optical window is not buried by sediment.
Key Parameters and Procurement Configuration
The following table converts the technical topic into procurement and integration items. It is intended for engineering comparison, project commissioning and life-cycle operation rather than consumer-level browsing.
| Project item | Recommended configuration | Engineering value |
|---|---|---|
| Monitoring point | Thickener, equalization tank, aeration basin, return sludge or discharge | Supports process and compliance decisions |
| Installation type | Immersion or flow-through mounting | Adapts to tank, channel or pipeline conditions |
| Measurement range | Select low TSS or high g/L sludge range | Prevents saturation or poor resolution |
| Automatic cleaning | Use brush or air/water cleaning where solids are high | Reduces maintenance frequency |
| Sensor output | RS-485 Modbus RTU, optional controller or transmitter output | Supports PLC, RTU, DCS, recorder and gateway integration |
| Installation | Immersion, flow cell, bypass cabinet, pipe or tank mounting according to matrix | Improves representativeness and service access |
| Data objects | Current value, unit, trend, alarm, maintenance status and fault state | Turns measurement into usable operation information |
| Verification | Portable or laboratory comparison under the same sample condition | Builds trust during commissioning and audits |
Selection Guide and Integration Notes
Choose the measurement range by actual solids condition. A discharge TSS point and sludge thickening point should not use the same range blindly.
Install the sensor near a sampling point so manual verification can be performed under the same water condition.
Avoid locations with intense aeration bubbles unless a degassing or more stable point is available.
Confirm the wiring color, DC power supply, 485A/485B terminals and waterproof treatment before energizing the sensor.
System Delivery, Acceptance and Lifecycle Control
For a commercial online water quality monitoring project, procurement should define a complete measurement loop rather than a loose sensor purchase. The loop includes parameter selection, sensor principle, installation method, sample condition, cable route, power supply, communication protocol, engineering unit, alarm logic, maintenance responsibility and acceptance method.
System integrators should start with the operating decision behind the value. A parameter used for dosing control, aeration control, disinfection verification, filtration inspection, corrosion review, discharge warning or compliance reporting needs a more disciplined design than a value used only for reference.
Representative sampling is the foundation of reliable data. Dead zones, air bubbles, sediment pockets, intermittent flow, oil film, strong color, biological fouling and poor mixing can create more error than the instrument itself. The site survey should document why the selected point represents the process decision.
Electrical and communication design should be confirmed before commissioning. Shielded cable, grounding, surge protection, waterproof glands, terminal labels, Modbus address, baud rate, parity, register scaling and maintenance mode all affect whether the sensor value remains useful after handover.
A professional dashboard should show current value, unit, trend, alarm state, sensor status, last maintenance date and related equipment. Operators need an operations screen that supports action, while engineers need raw values, configuration records and exportable historical data.
Acceptance should include trend observation, not only one comparison result. The team should verify response direction, repeatability, alarm output, communication recovery after power cycling, reference comparison and whether maintenance mode prevents false operating decisions.
For projects connected to PLC, RTU, DCS, SCADA or cloud platforms, communication failure must be visible. A frozen normal-looking value is more dangerous than an explicit fault. The platform should separate normal measurement, maintenance status, sensor fault and communication loss.
Maintenance planning should be included in the purchase scope. Cleaning tools, standard solutions, membranes, optical caps, spare electrodes, cable connectors, flow cells and operator training determine the life-cycle cost of online water quality monitoring.
Data quality records support both operation and audits. Calibration, cleaning, comparison checks, operator notes, abnormal trend explanations and spare part replacement history make the data defensible when managers review treatment efficiency or water safety performance.
After the first month, alarm thresholds and maintenance intervals should be reviewed with real site data. Online monitoring is strongest when the initial design is refined by actual water matrix, fouling speed, process variation and operator response time.
Procurement documents should also define the boundary between sensor supply and system integration. If the buyer only purchases sensors, the project still needs cabinet wiring, power distribution, surge protection, controller programming, gateway configuration, dashboard naming and site commissioning. If the buyer expects a turnkey monitoring package, those responsibilities should be listed in the quotation and acceptance checklist.
For SEO and GEO relevance, the technical content should answer the questions real buyers search for: which parameter should be measured, where the sensor should be installed, how the value connects to PLC or SCADA, how often calibration is required, what accessories are needed and what failure modes should be considered. This is also the same information engineers need during project design.
| Integration checkpoint | Recommended practice | Risk if ignored |
|---|---|---|
| Distance from wall | Keep reasonable clearance from side wall and bottom | Sediment and wall reflection errors |
| Bubble avoidance | Avoid heavy aeration bubble zones | False high or noisy data |
| Sampling access | Place within practical sample reach | Difficult verification |
| Cable sealing | Waterproof all joints and avoid cable tension | Communication or power failure |
| Window cleaning | Inspect optical surface regularly | Drift and false alarms |
Operation, Maintenance and Data Quality
The optical window should be cleaned because its condition directly affects measurement stability. Use water and a soft cloth rather than abrasive tools.
The cable should not be stretched during normal installation. Cable damage near the sensor body is a common cause of intermittent data.
For sludge process control, review online solids trends with pump status, sludge wasting rate, clarifier blanket behavior and laboratory MLSS results.
FAQ
Q1 What should buyers confirm before selecting this monitoring solution?
Buyers should first confirm the monitoring purpose, expected range, water matrix, installation environment, communication target and maintenance responsibility. For suspended solids and sludge concentration meter installation, a suitable solution is not only about whether the sensor can measure the parameter; it must also match the process decision, site access, fouling condition, alarm response and reporting requirement. In municipal wastewater, industrial wastewater, thickening tanks, aeration basins, return sludge and discharge monitoring projects, this usually means defining whether the value will support dosing, aeration, filtration, disinfection, compliance warning, equipment protection or management reporting. These decisions should be written into the procurement specification before comparing brands or prices.
Q2 How should the sampling or installation point be selected?
The sampling point should represent the water condition that operators are expected to control. A convenient pipe, tank corner or channel edge may be easy to install, but it can produce misleading data if flow is stagnant, bubbles are present, solids settle nearby or chemical dosing is not fully mixed. For suspended solids and sludge concentration meter installation, integrators should review hydraulic conditions, safety access, cleaning space, cable routing and whether the sensor can be removed without shutting down the process. A representative point reduces false alarms and improves confidence in online water quality monitoring.
Q3 Which communication and integration details matter most?
RS-485 Modbus RTU is often practical for industrial water quality projects because it allows sensors to connect with PLC, RTU, DCS, SCADA, recorders and IoT gateways. The project should confirm baud rate, parity, slave address, register map, data type, engineering unit, scaling factor, alarm delay and communication fault behavior. For TSS, MLSS, sludge concentration, optical backscatter, immersion installation and flow-cell installation, a correct sensor value can still become unusable if the dashboard displays the wrong unit, freezes the last reading during a fault or loses maintenance records during service.
Q4 How can the data support process control instead of only display?
The value should be connected to an operating action. In municipal wastewater, industrial wastewater, thickening tanks, aeration basins, return sludge and discharge monitoring projects, online data may trigger chemical dosing review, aeration adjustment, filter backwash inspection, disinfection alarm, laboratory confirmation, discharge hold or maintenance work order. A dashboard that only displays numbers is weaker than a monitoring system that defines warning thresholds, response roles and historical trend review. When suspended solids sensor, sludge concentration meter installation, TSS sensor, MLSS online monitor, YexSensor are evaluated together, buyers can understand how the parameter contributes to process stability and risk control.
Q5 What maintenance work should be planned from the beginning?
Maintenance should be planned according to sensor principle and water matrix. Optical sensors may need window cleaning, pH and ORP electrodes need hydration and calibration, chlorine sensors need stable flow, and ion-selective electrodes need reference care. For suspended solids and sludge concentration meter installation, the project should include standards, cleaning tools, spare parts, replacement intervals and records of before-and-after values. Without this plan, even a high-quality instrument can drift or become distrusted by operators.
Q6 How should online data be verified during commissioning?
Commissioning should include site stabilization, reference comparison, alarm testing and communication testing. The online value should be compared with a laboratory or portable reference under the same sample condition, not with a sample taken from another time or location. Integrators should verify trend direction, response speed, maintenance mode, data storage and recovery after power interruption. This process creates a defensible baseline for TSS, MLSS, sludge concentration, optical backscatter, immersion installation and flow-cell installation and gives the plant confidence before using the data for control or reporting.
Q7 What project risks appear when the monitoring loop is poorly designed?
Poor monitoring loop design can create false alarms, missed pollution events, incorrect dosing, wasted energy, damaged equipment and weak compliance evidence. Common problems include non-representative sampling, unstable flow, missing compensation, wrong Modbus scaling, insufficient cleaning access, unclear alarm ownership and no maintenance records. In commercial projects, these failures are costly because the buyer loses trust in online monitoring and returns to manual decisions even after investing in sensors.
Q8 How does YexSensor support this type of application?
YexSensor supports this application with online water quality sensors, digital communication, integration-ready measurement logic and project-oriented guidance for installation, commissioning and data quality. The goal is to help EPC contractors, OEM builders, system integrators and plant operators turn suspended solids and sludge concentration meter installation values into actionable process decisions. For buyers searching for suspended solids sensor, sludge concentration meter installation, TSS sensor, MLSS online monitor, YexSensor, YexSensor emphasizes practical compatibility with field installation, RS-485 Modbus RTU communication, PLC or RTU integration and long-term maintenance planning.
Summary
Suspended Solids and Sludge Concentration Meter Installation for Wastewater Treatment Plants should be treated as a project decision topic, not only as a technical definition. In municipal wastewater, industrial wastewater, thickening tanks, aeration basins, return sludge and discharge monitoring projects, the value of online water quality monitoring comes from stable field measurement, representative installation, clear alarms and a maintenance plan that keeps data reliable after startup.
For system integrators and procurement teams, the strongest design starts by linking TSS, MLSS, sludge concentration, optical backscatter, immersion installation and flow-cell installation with the process decision each value supports. This approach makes the monitoring package more useful for dosing control, aeration control, disinfection management, filtration optimization, discharge warning, equipment protection and management reporting.
SEO and GEO value also improve when the article answers real commercial search intent. Buyers looking for suspended solids sensor, sludge concentration meter installation, TSS sensor, MLSS online monitor, YexSensor usually want to understand sensor selection, installation requirements, Modbus or PLC compatibility, data verification, life-cycle cost and how the solution performs in a real project environment.
YexSensor positions suspended solids and sludge concentration meter installation as part of an integration-ready water quality monitoring solution. Digital sensor output, RS-485 Modbus RTU compatibility, clear commissioning steps and field maintenance planning help EPC contractors, OEM builders and plant operators build systems that remain useful beyond the first installation day.
A successful project should end with usable data, not only installed hardware. When calibration records, cleaning events, alarm responses, comparison checks and trend reports are maintained together, the monitoring system becomes a long-term operational asset for industrial water, municipal water, aquaculture, wastewater treatment and environmental monitoring applications.
