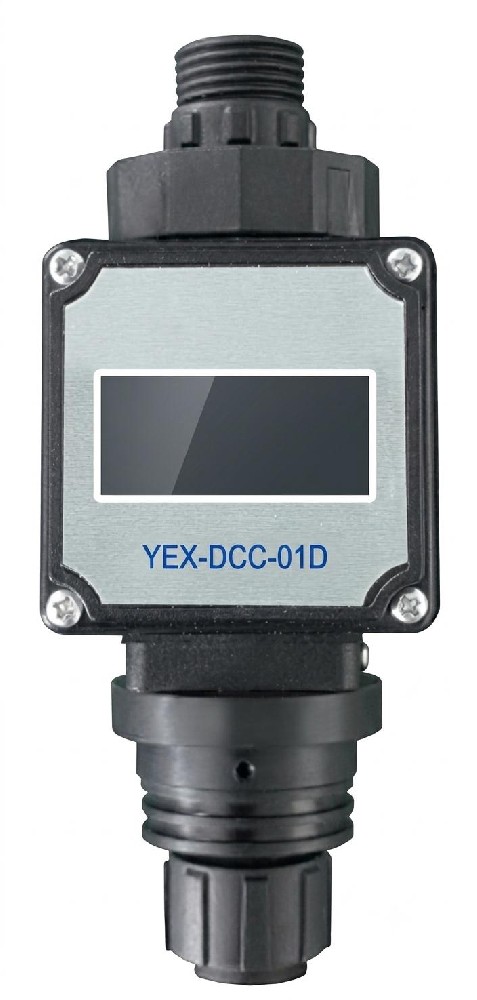

YexSensor YEX-DCC-01D Portable Data Collection Device: Fast On-Site Verification for Water Quality Sensors
During water quality monitoring project delivery, integrators often need to confirm sensor address, parameter type, measured value and output signal before connecting devices to a cabinet or PLC. YexSensor YEX-DCC-01D Portable Data Collection Device combines local OLED display, RS485 communication and 4-20mA output support, giving engineers a convenient tool for fast on-site verification and sensor setup.
Core Technical Advantages: Stable Data Collection, Standard Interfaces and Engineering Reliability
OLED Display for Direct Field Reading
The device displays key sensor information on site, reducing dependence on a laptop, cabinet screen or remote platform during early-stage commissioning.
RS485 and 4-20mA Dual Output Support
The interface design supports common digital and analog integration workflows, helping engineers verify both communication and output consistency.
Portable Tool for Faster Delivery
YEX-DCC-01D is suited for factory acceptance checks, cabinet assembly verification and field troubleshooting, helping contractors reduce repeated wiring checks and shorten commissioning cycles.
YexSensor YEX-DCC-01D Portable Data Collection Device with OLED Display Application Scenarios
YEX-DCC-01D is designed for water quality monitoring projects that require stable data reading, clear field operation and easy system integration.
Factory Acceptance Testing
Verify sensor communication and output before shipment or cabinet assembly.
On-Site Sensor Setup
Check address, parameter type, measured value and temperature during installation.
Wastewater Plant Maintenance
Assist operators and service teams with routine sensor inspection.
Pilot Water Treatment Projects
Support temporary data reading during process adjustment and testing.
YexSensor YEX-DCC-01D Portable Data Collection Device with OLED Display Technical Performance Parameters
| Technical Item | Parameter Details |
|---|---|
| Brand / Model | YexSensor / YEX-DCC-01D |
| Product Type | Portable data collection device with OLED display |
| Display Content | Sensor address, sensor type, measured value and temperature |
| Output / Communication | RS485 and 4-20mA dual output |
| Power Supply | 12-24V DC |
| Protection Grade | IP65 |
| Application Mode | Portable commissioning and verification |
| System Compatibility | Suitable for RS485/Modbus water quality sensor projects |
YexSensor YEX-DCC-01D Portable Data Collection Device with OLED Display Installation and Electrical Integration Guidelines
Main Installation and Wiring Requirements
Power Check
Confirm 12-24V DC supply before connection.
Signal Wiring
Check RS485 A/B polarity and 4-20mA loop wiring according to the sensor and project requirements.
Commissioning Sequence
Verify one sensor at a time first, then connect it to PLC, gateway or cabinet system.
Maintenance and Commissioning Guide
Routine Maintenance Tasks
Display Check
Confirm that address, parameter type and measured value are stable before handover.
Cable Inspection
Avoid long-term cable tension and keep connectors dry during field use.
Commissioning Recommendations
Before connecting the device to an upper-level automation system, complete single-device testing first. Confirm power supply, signal polarity, communication address, baud rate, sensor value stability and platform mapping. For project delivery, keep a written commissioning record so that future operation and maintenance teams can quickly trace settings and wiring conditions.
Frequently Asked Questions (FAQ)
Q1: Is YEX-DCC-01D suitable for system integrators?
A1: Yes. It is designed for engineering projects where water quality sensors must be connected, displayed, commissioned and integrated into automation or remote monitoring systems.
Q2: Does it support RS485/Modbus architecture?
A2: Yes. YexSensor data collection and control products are developed around RS485/Modbus water quality monitoring workflows, although the exact connection should be confirmed according to the sensor model and project configuration.
Q3: How does it help improve field stability?
A3: It supports standardized wiring, clear parameter management and stable communication logic, reducing common site problems such as polarity errors, address conflicts, poor grounding and unstable signal routing.
Q4: Can it connect to PLC, DCS or SCADA systems?
A4: Yes. Depending on the project configuration, it can work with PLCs, DCS systems, RTUs, edge gateways, SCADA software and cloud platforms through standard digital or analog interfaces.
Q5: What should be checked first if communication fails?
A5: Check power supply, RS485 A/B polarity, baud rate, device address, shielding and whether multiple devices share the same address on the bus.
Q6: Can it be used in outdoor water quality monitoring projects?
A6: Yes, but outdoor or humid applications should use a proper control cabinet, waterproof enclosure or station structure to protect terminals, cables and power connections.
Q7: Which water quality parameters can be integrated?
A7: It can be used with YexSensor water quality sensor systems for common parameters such as pH, ORP, conductivity, dissolved oxygen, turbidity and other project-specific measurements.
Q8: What information is needed before selecting a model?
A8: Please provide sensor model, quantity, output signal type, installation environment, power supply condition, required display/control functions and the target PLC, gateway or platform interface.
